CORROSHIELD® Fasteners FIBRETAPP® Corrugated Fibre Cement Screw

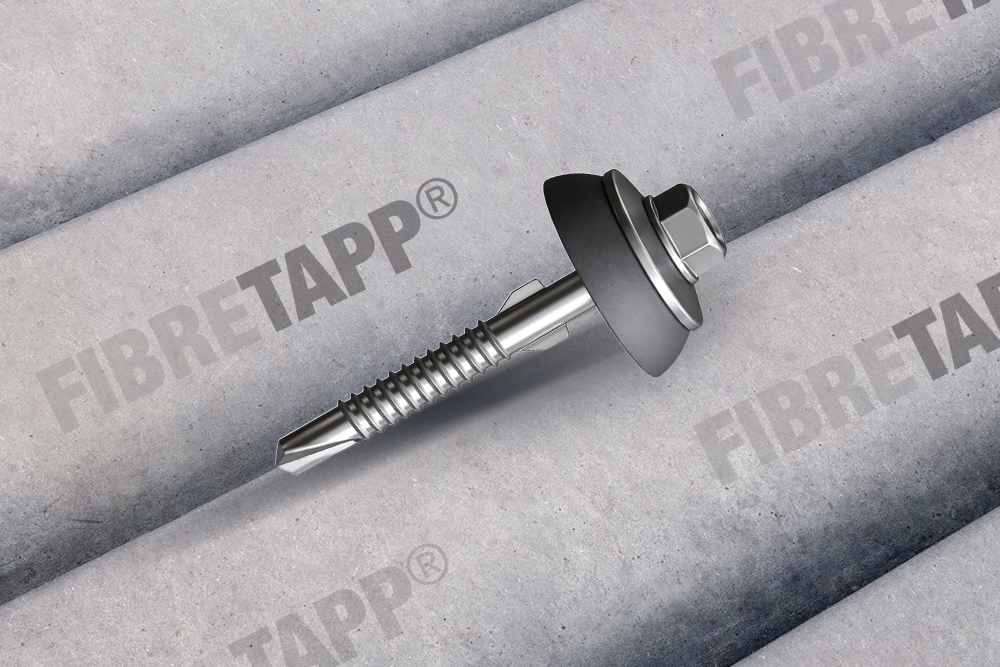

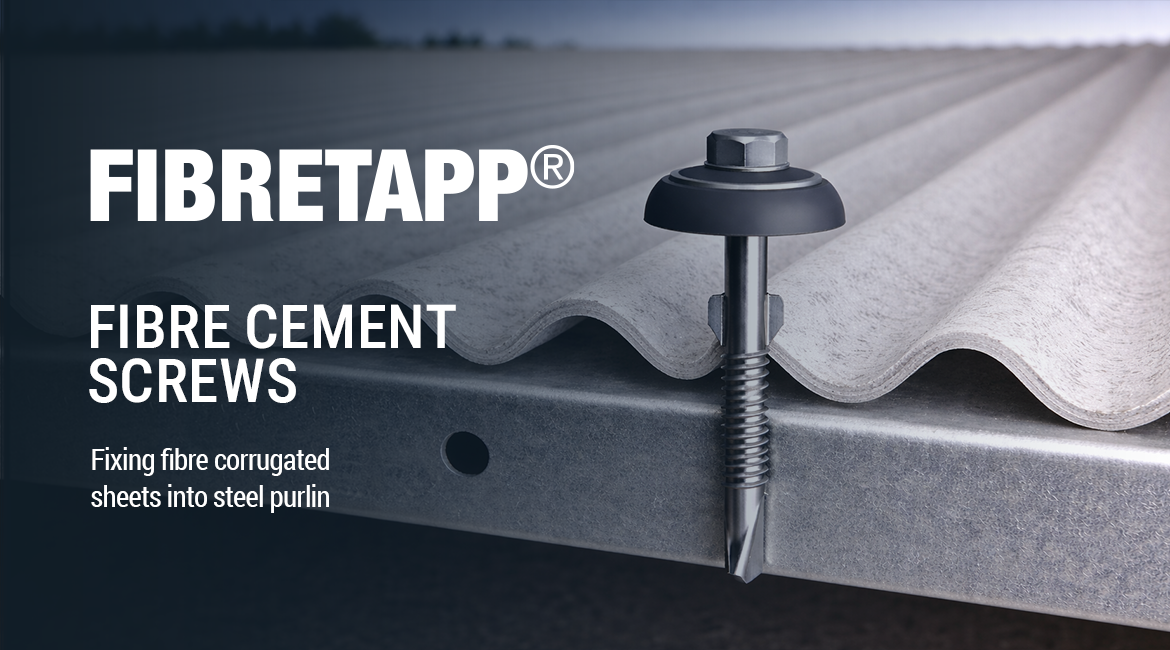

Fibre cement roofing sheets need fastening solutions that support controlled drilling and weather sealing—especially in exposed roof zones. FIBRETAPP® Corrugated Fibre Cement Screws are engineered for fibre corrugated sheet fixing into steel purlins, featuring a partial thread with FIBRETAPP® wing and a dome washer system aimed at improving sealing and installation reliability.

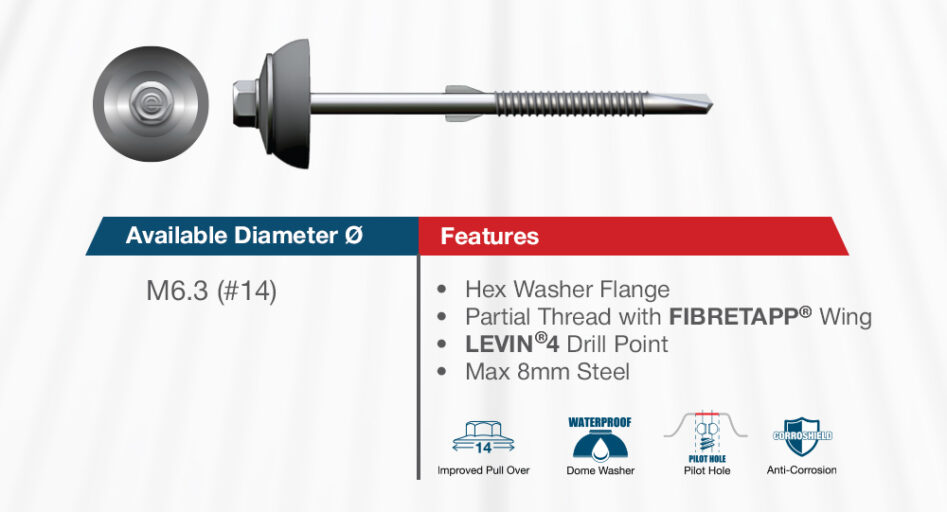

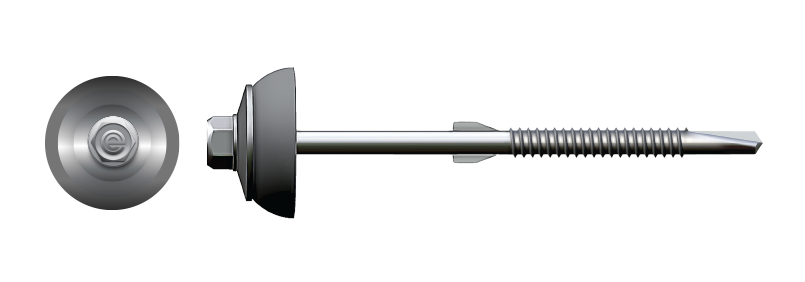

Specification
Material: Carbon Steel
Head Type: Hex Washer Flange
Thread: Partial Thread with FIBRETAPP® Wing
Drill Point: LEVIN® 4 Drill Point
Drilling Capacity: Max 8mm steel
Washer: Dome Washer (Ø 25mm in the listed range)
Best-Fit Applications
Ideal for:
Fibre cement roof sheets
Roofing sheet installations requiring sealing-focused fastening
Substrate:
Steel purlins
Key Features & Benefits
/1

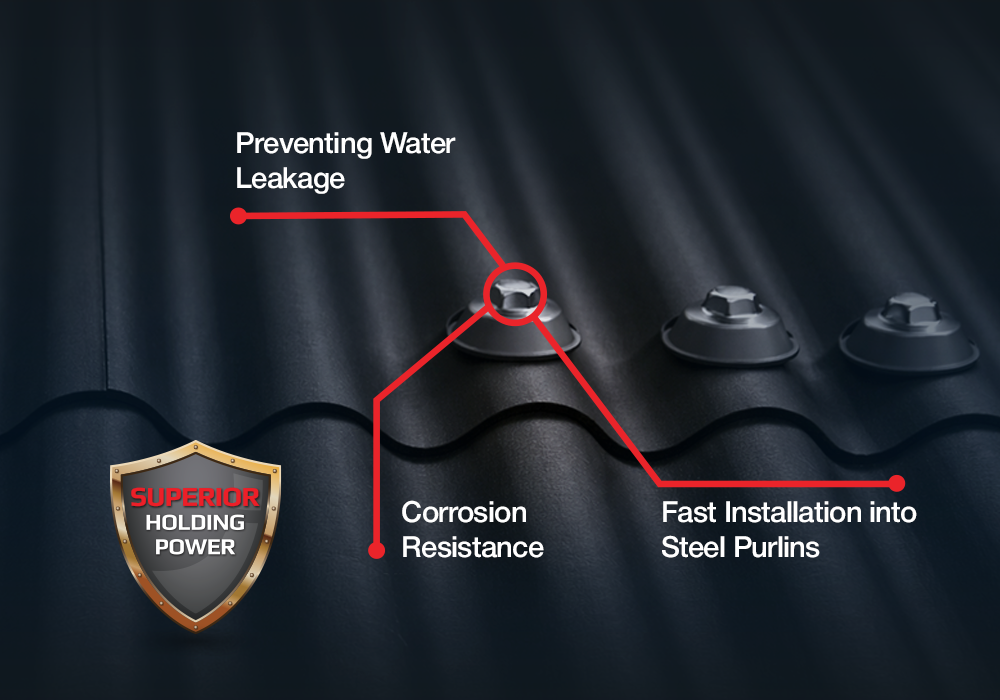

Dome washer for water sealing
FIBRETAPP® includes a dome washer that supports water sealing at the fixing point—important for corrugated roofing profiles.
/2
Pilot hole effect for controlled fixing
The FIBRETAPP® wing supports pilot hole action during installation—helping achieve cleaner fixing on fibre sheet applications.
/3
LEVIN® drill point for steel
Configured with a LEVIN® 4 drill point and rated for drilling into up to 8mm steel—supporting faster installation and consistent engagement.
/04
Partial thread for application fit
FIBRETAPP® uses partial thread combined with the winged design to match the requirements of corrugated fibre sheet roofing installations.
Fastener Types
FIBRETAPP®
Designed for fixing fibre corrugated (fibre cement) sheets into steel purlins with a sealing-focused build—pilot hole action + dome washer for roofing applications.
Water Sealing (Dome Washer)
Pilot Hole (Winged Design)
Speed Drill (LEVIN® Drill Point)
Anti-Corrosion
Steel Purlin Fixing (Roofing)
Quality, Testing & Assurance
FIBRETAPP® is part of a fastening system supported by:
Defined manufacturing process with in-process QC checks
Testing capabilities including corrosion resistance testing, hardness testing, drill testing, PMI, and dimensional/profile checks (as shown in the catalogue QC section)
Coating solutions designed to meet corrosion resistance performance requirements aligned to international standards (ASTM / AS / BS / EN referenced in the brochure)
How to Select the Right FIBRETAPP® Screw?
Confirm the sheet material – Select the FIBRETAPP® screw specifically designed for fibre cement, fibre sheets, or similar brittle materials.
Choose the correct drill point – Ensure the drill tip and shank design allow clean penetration without cracking or chipping the sheet.
Match thickness & support – Pick the right screw length based on sheet thickness and the underlying steel or timber support.
Ensure sealing & durability – Use EPDM sealing washers and corrosion-resistant coatings for long-term weatherproof performance.
Installation guidelines (best practices)
Confirm sheet profile and choose length based on corrugated sheet height and purlin engagement requirement.

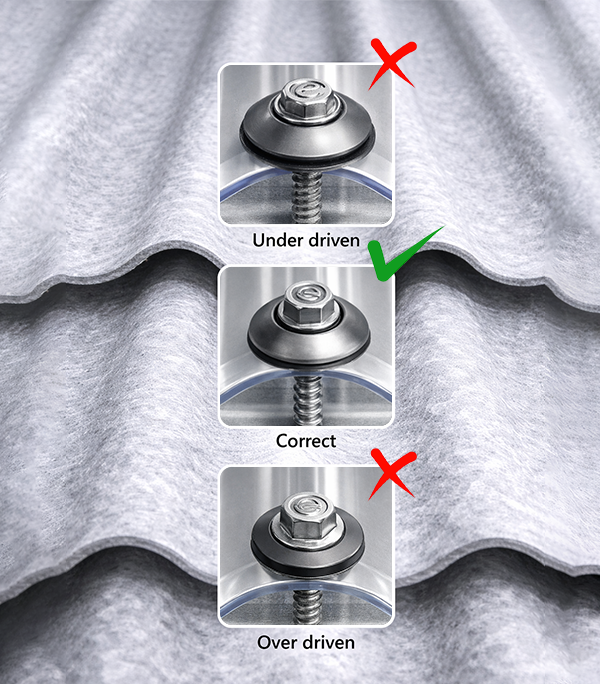

Drive the screw straight and keep washer setting controlled: secure underhead seating, do not overdrive (consistent with the brochure’s general washer-setting guidance visuals).
Use a suitable powered tool and correct drive bit/socket to maintain consistent installation torque.
Get Pricing & availability for FIBRETAPP®
Frequently asked questions
FIBRETAPP® is specified for fixing fibre corrugated sheets into steel purlins.
The listed configuration uses a 25mm dome washer for sealing-focused roofing performance.
The catalogue specifies drilling capacity of max 8mm steel (LEVIN® 4 drill point).
The brochure lists 6.3 (14g) diameter in lengths 90–130mm with Lt 30mm.
